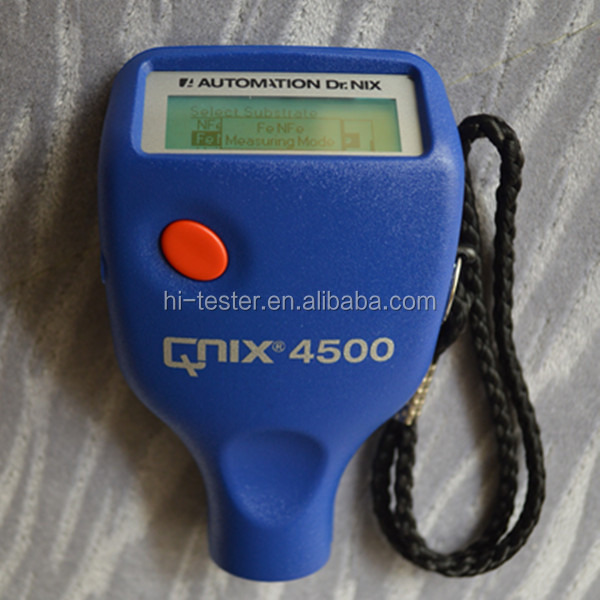

Name: QuaNix 4500 4500 Metals Coating Thickness Gauge
Brand: QuaNix 4500 4500 Metals Coating Thickness Gauge
SKU: 4500
Price: 1 USD
Availability: InStock
Rating: 4.7 (110 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: 4500

stock: in stock

price: wholesale

quality: high

Grundinformation

Model Number: 4500

Zahlung und Versand AGB

Produkt-Beschreibung

Application

The latest design of the probe and the host integration type,QuaNix4200 is used for measureing nonmagnetic coatings such as paint,All kinds of anti-corrosion layer,powder spraying,plastic,rubber,synthetic material like enamel,Zn,Cr and Pb.

Features

1.Small and integral structure,Automatic open and shut down

2.Operation simple,Gently only put it, can measure the results.

3.Just setting zero,Don't need standard piece of calibration

4.Ruby probe,temperature compensation

Liquid crystal display content

1.Coating thickness values

2.Low voltage display

3.Error display

4.operator pattern

5.serial number

technical parameters
Magnetic body	Fe Probe(4200/4500)
Non Magnetic body	NFe Probe(4500)
measurement range	Fe 0-3000um/NFe 0-2000um
accuracy	0-50um ≤+/-1um 50-1000um ≤+/-1.5%numerical reading 1000-3000um≤+/-3%
Minimum contact surfaces	10×<10mm>
Minimum radius of curvature	convexity <3mm> concave surface <25mm>
Minimum thickness of the matrix	Fe <0.2mm>/NFe <0.05mm>
emperature compensation range	0<-60°C>
display	LCD
probe	Ruby fixed
power supply	2×1.5Vdry battery
size	100×60×<27mm>
