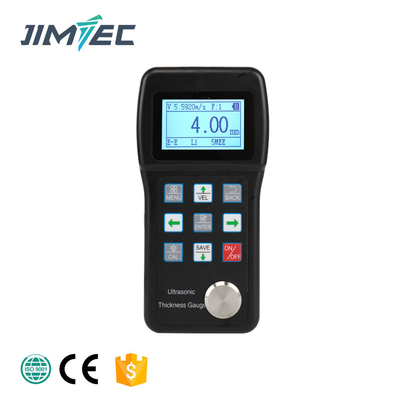

JIMTEC JITAI5103 Digital Metal Thickness Gauge Coating Ultrasonic Thickness Gauge 145mm*74mm*32 mm

1 Set
MOQ
JIMTEC JITAI5103 Digital Metal Thickness Gauge Coating Ultrasonic Thickness Gauge 145mm*74mm*32 mm
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 2 years
Customized support: OEM, ODM
Model Number: JITAI5103
Product name: Through Coating Ultrasonic Thickness Gauge
Display: 128*64 LCD with LED backlight
PE mode: 0.75-600mm
EE mode: 3-25mm
Velocity Range: (1000~9999) m/s
Resolution: 0.01mm
Measuring accuracy: ±(0.5%H+0.04mm)
USB Port: Yes
Size: 145mm*74mm*32 mm
Weight: 245g
Zertifizierung: CE, ISO
Grundinformation
Zertifizierung: CE, ISO
Model Number: JITAI5103
Zahlung und Versand AGB
Produkt-Beschreibung
Product Overview

JIMTEC JITAI5103 Digital Metal Thickness Gauge Through Coating Ultrasonic Thickness Gauge

Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness
of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
PRODUCT SPECIFICATIONS
Display
128*64 LCD with LED backlight
Measuring Range
(0.75~600)mm（Steel）,(Through Coating):3-25mm
Velocity Range
(1000~9999) m/s
Resolution
0.01mm
Measuring accuracy
±（0.5%H+0.04mm)
Measurement cycle
Single point measurement 6 times/per
Storage
40 values of saved data
Power Source
2pcs 1.5V AA size
USB Port
YES
Dimensions
145mm*74mm*32 mm
Weight
245g
PRODUCT CONFIGURATION
Name
QTY
1
Main Body
1
2
Standard Probe（5MHz,D10mm）
1
3
Couplant bottle(empty)
1
4
Manual
1
5
Product Certificate
1
6
Warranty Card
1
7
ABS Case
1
