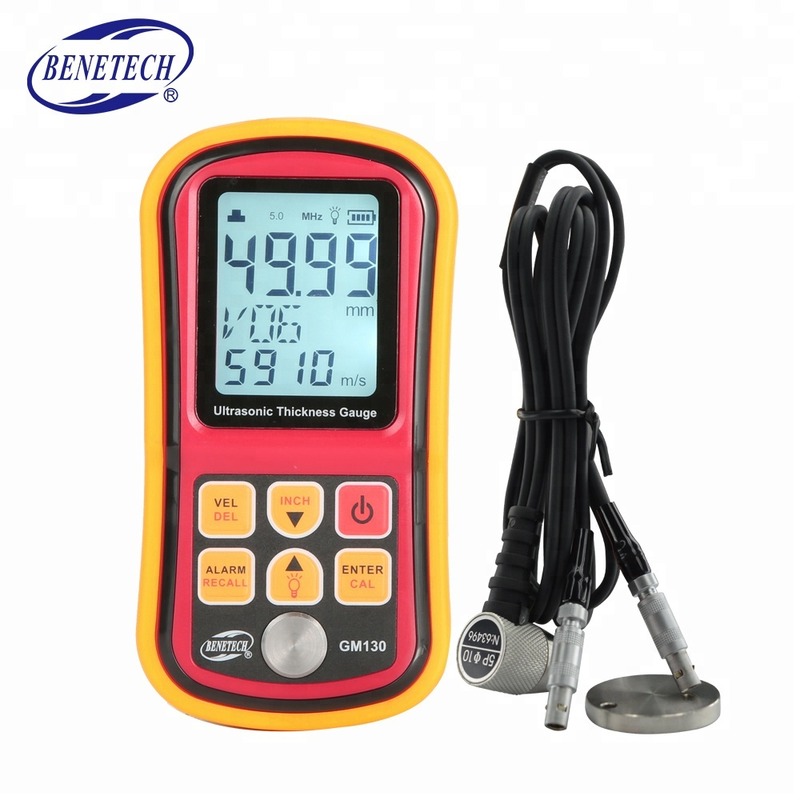

GM130 Digital ultrasonic meter portable copper thickness tester

This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro

processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely
used in various precise measurement for different hardware /parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.

This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic,
glass etc., as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron due to its big crystalloid composition.

Measuring Range	1.0-300.0mm(Steel)
Accuracy	±(1%±0.1)mm
Pipe Measuring Lower Limit	φ203mm(Steel); φ122mm(Steel)
Sound Velocity Range	1000-9999m/s
Working Frequency	5MHz
Working Temperature Range	0-45°C
Automatic Zero Adjustment	√
Data Store Function	√
Auto Power Shut Off	√
Low Battery Indication	3V±0.2V
Power	1.5 V AAA * 3PCS

Product Description

Company Information

1: Can I get samples?
Yes, certainly. We will provide the existing samples for free, Sample fee is refundable when you make an order from us.
We usually send samples by FEDEX, UPS, TNT or DHL. If you have carrier account, it will be convenient for both of us. If you don't have a relevant account, we will immediately create a link on alibaba and send you at the meantime, what you need to do is just make a purchase.
2: How long is the sample lead time?
We could arrange the existing samples express delivery immediately, it will only takes 3-5 days into your hand. For any special samples requirement, we will contact you first, just wanna make everything in your expectation.
3: What are the certifications do you have?
As showed in the section of company information, we have CE, FCC, ROSH certifications. As you can see, our company has a strong competitives and great qualified in our business area. We aim to provide the best quality and services to all global clients.
