Produkt-Beschreibung

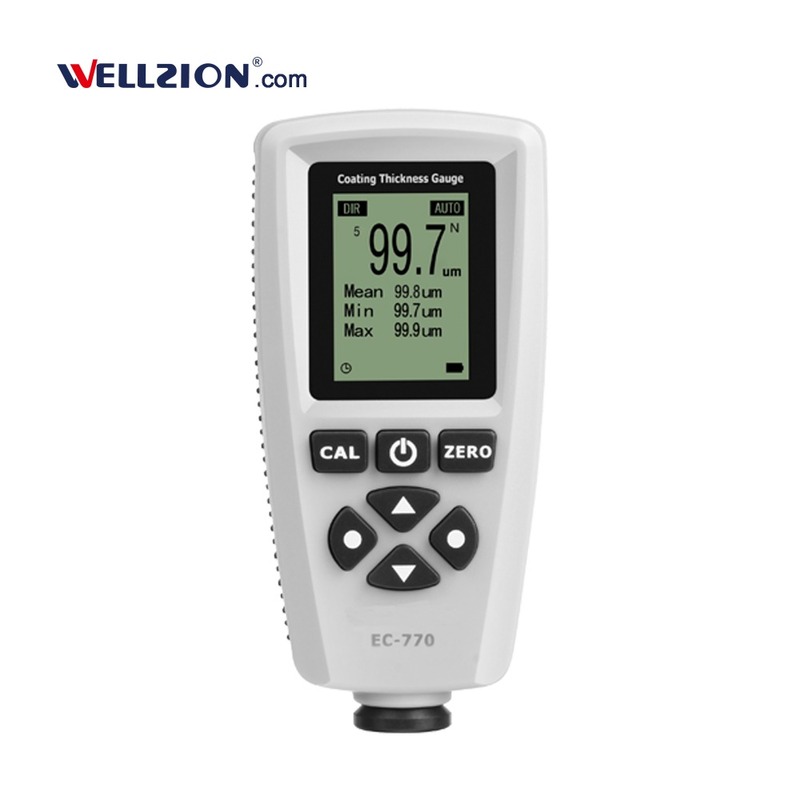

EC-770,0~2000um coating thickness gauge amazon hot model

Model	EC-770	EC-770S	EC-770SE
Probe type	Internal probe	Internal probe	External probe
Measuring principle	Fe: Magnetic induction ; NFe: Eddy currents
Measuring range	0~2000μm
Accuracy	±(2.5%+1μm)	±(2%+1μm)	±(2%+1μm)
Resolution	0.1μm(0~99.9μm), 1μm(≥100μm)
Unit	μm, mm, mils
Calibration	Zero calibration and multi-point calibration
Readings memory	320 readings	2000 readings	2000 readings
Display	128*128 dot matrix LCD display
Operation environment	Temperature: -10~50°C
Storage environment	Temperature: -20~60°C
Power supply	Two 1.5V AAA batteries
Dimensions	114mm53mm25mm
Weight	80g

Direct menu display

More easy to operate and high efficient

Real-time recording, ensure data integrity

Unique software designed to make data analysis more reliable

Selection Guide

Model		EC-500A	EC-500X	EC-770	EC-770S	EC-770X
Measurement Range	F	0~1350μm	0~500μm	0~2000μm	0~2000μm	Probe Options: F2.5: 0~2500μm F3.0: 0~3000μm F5.0: 0~5000μm
Measurement Range	N	0~1350μm	0~500μm	0~2000μm	0~2000μm	Probe Options: N2.5: 0~2500μm N3.0: 0~3000μm
Measurement Accuracy	F	3%+1μm	1%+1μm	2.5%+1μm	2%+1μm	2%+1μm
Measurement Accuracy	N	3%+1.5μm	1%+1μm	2.5%+1μm	2%+1μm	2%+1μm
Data Storage		x	2000 Readings	320 Readings	2000 Readings	2000 Readings
USB Interface		x	√	√	√	√
