EC-770X F5000um N3000um EC-770X Probe Internal Coating Thickness Gauge

EC-770X F5000um N3000um EC-770X Probe Internal Coating Thickness Gauge
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Grundinformation
Zahlung und Versand AGB
Produkt-Beschreibung

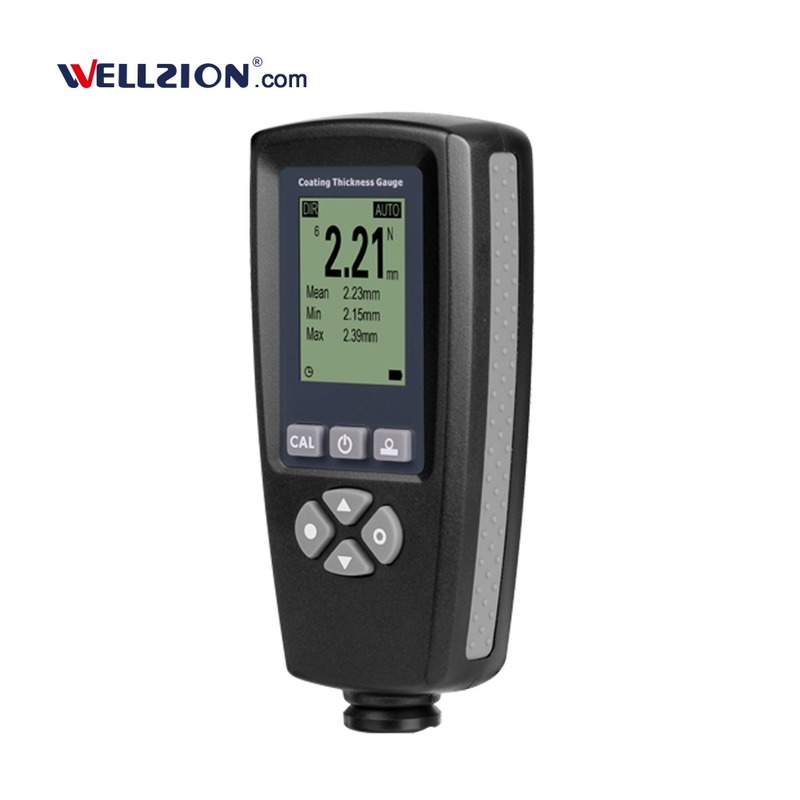

EC-770X,F 5000um N3000um pocket thickness gauge

Product Overview

Our thickness gauge design to measure the non-magnetic layers (painting, enamel, chrome etc) on steel and iron as well as all types magnetic base surface and non-conductive layers (painting and anodizing coatings on non-ferrous metals) on non-ferrous surface (aluminum, zinc or Copper etc).
All for easy and high efficient operation:
Big button design and built in menu guide to operate easily
Make “IT” automatically:
The probe will detect magnetic induction or eddy currents automatically.
In GEN status separate data group and readings will stored automatically.
Each group support individual statistics, alarm limit settings and calibration.
CAL button press to start calibration.

Function & Benefits
  • Measurement range up to 5,000um
  • Data storage up to 2000
  • USB transfer data to PC
  • Dual-core 32 ARM processor for higher efficiency
  • 2 measure mode: Single/Continuous
  • 2 group model: DIR (direct)/GEN (General)
  • 3 probe mode: Auto/Magnetic/Eddy current
  • Auto temperature compensation ensures accuracy
Specifications

Model EC-770 EC-770S EC-770X
Magnetic Induction √ √ √
Eddy Current Effect √ √ √
Measurement Range F 0~2000μm 0~2000μm Probe Options:
F2.5: 0~2500μm
F3.0: 0~3000μm
F5.0: 0~5000μm
N 0~2000μm 0~2000μm Probe Options:
N2.5: 0~2500μm
N3.0: 0~3000μm
Measurement Accuracy F 2.5%+1μm 2%+1μm 2%+1μm
N 2.5%+1μm 2%+1μm 2%+1μm
Resolution 0μm~99.9μm 0.1μm 0.1μm 0.1μm
100μm~999μm 1μm 1μm 1μm
>1000μm 0.01mm 0.01mm 0.01mm
Data Storage 320 Readings 2000 Readings 2000 Readings
Multi-Language √ √ √
Real-time Data Statistics √ √ √
CPU 16 Bits MCU 32 Bits ARM 32 Bits ARM
Automatic Temperature Compensation x √ √
Reset Zero √ √ √
Multi-Point Calibration √ √ √
Measurement Data Grouping √ √ √
One Key Data Clear (Press to delete) √ √ √
One Key Group Data Clear (Press and hold to delete) x √ √
Multi-Level Battery Indicator x √ √
Digital Display 128*128 Dots 128*128 Dots 128*128 Dots
Auto Power Off √ √ √
USB Interface √ √ √
Storage Temperature 0°C~60°C
Operating Temperature -10°C~60°C
Power Supply 2 x 1.5V AAA Batteries
